Vacuum & Pressure Reflow Oven VPF200/VPF300

Back to Product List

VPF Vacuum & Pressure Reflow Oven is the perfect tool with a wide range of uses, from process development to high-mix low-volume production of fluxless and void-free soldering

vacuum & pressure reflow system

The VPF vacuum and pressure reflow oven has a wide heating area coupled with a unique rapid cooling function that expedites the cooling process leading to enhanced productivity.

The VPF is not only capable of the conventional vacuum process but also pressurized process up to 0.4 MPA. This allows for a wide degree of variation of the pressure inside the chamber. Thus, voids in the solder joint can be minimized, resulting in nearly void free soldering.

VPF is also capable of flux-less soldering by the reduction of oxide film by formic acid vapor. The system can be equipped with a formic acid babbler with a liquid temperature control which can supply Nitrogen gas mixed with formic acid at a constant concentration into the process chamber. Forming gas is also available for the same purpose.

With the outstanding functions available on the VPF, users are offered a lot of flexibility in terms of fluxless and void-free soldering.







Effective void-free soldering

X-ray images of solder joint between 10x10mm chip and copper substrate using SAC305 solder paste printed in 0.2mm thickness. In the reflow soldering process combined wtih vacuum and pressurizing, nearly void-free solder joint is achieved.
normal-reflow
Normal atmospheric pressure
  vac-soldering
with vacuum
  vac-with-pressure
with vacuum + pressurizing



Features and Benefits

  • Wide practicable heating area
  • Rapid cooling function
  • 0.4Mpa pressurizing process available
  • Max. 450 degree C heating capability
  • Formic acid bubbler with thermal function
  • Built-in low vibration dry vacuum pump
  • Data logging PC software available
  • Multiple gas lines for various process development
  • Flexible process setting and operation with 7” touch panel
  • Linkage with formic acid monitor (option)
vpf300_plateHeating plate integrated with rapid cooling function(VPF300)



touch-panel

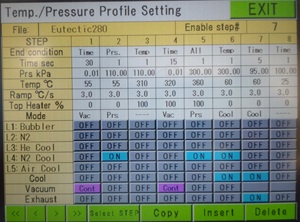

Setting and editing of temperature, pressure and gas line can be done flexibly on the touch panel.



log-soft

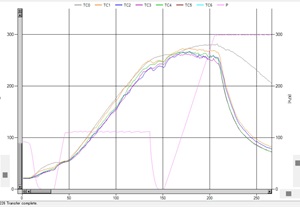

Measurement data of temperature and pressure can be downloaded to PC



Basic Specifications

MODEL VPF200 VPF300
Process area 200mm x 250mm 300mm x 300mm
Max. temperature 450°C
Vacuum level 10Pa (Built-in clean dry vacuum pump)
Max. positive pressure 0.4MPa (Max. 0.8Mpa customized system is also available.)
Process gases N2 gas, He gas, forming gas, N2 mixed with formic acid
Machine size W650mm x D670mm x H1350mm W783mm x D735mm x H1470mm
Weight Approx.160kg Approx.200kg
Power AC200V Three phase, Max.25A AC200V Three phase, Max.45A
Others Formic acid bubbler with temperature control (option)
